An outside shape is a useful introduction to a component, but it is rarely the whole identification record. A filter element may conceal its end arrangement in a side view, while a cooling component may show its overall outline without explaining a pipe opening or mounting position. Selected EexcavaStart records bring those different questions into view without treating the examples as one machine or one maintenance job.
Filter ends carry information the side view cannot
The complete outline helps establish which item is being discussed. End views add the centre opening, sealing contact surface and open or closed end arrangement. A separate cover or bowl has its own visible features; placing it beside an element does not establish that the pieces belong together.
This distinction matters when an enquiry begins with a used sample. Colour, pleats and outside diameter can help describe that sample, but they do not independently establish a replacement relationship. Each item needs its own original references and clearly associated views.
A dimension needs a named feature
Overall length, body length, outside diameter and an opening dimension answer different questions. The useful part of a measurement record is not simply the number on the tool: it is the connection between that number, the two reference points and the particular feature.

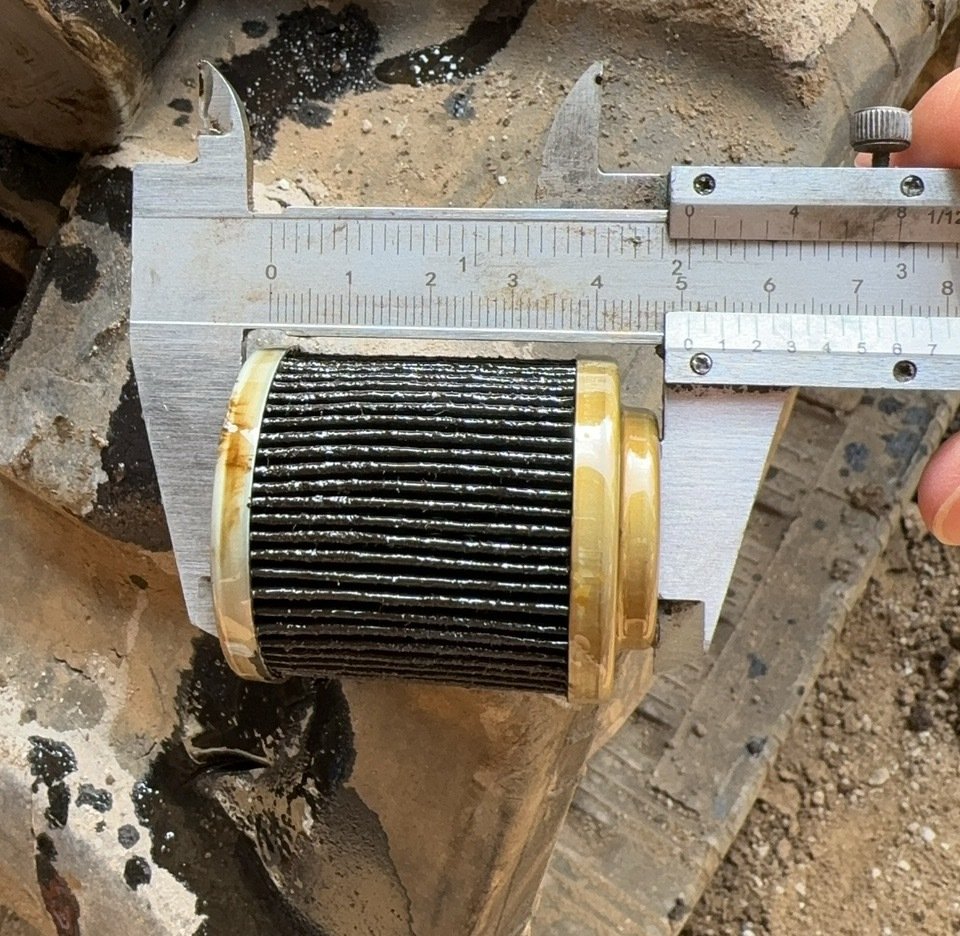

In the filter measurement example, the tool and component can be discussed together without turning an angled photograph into a confirmed specification. Deposits or deformation on a used item remain part of its recorded condition. They do not automatically define the dimensions of a new replacement.
Cooling components add openings and mounting references

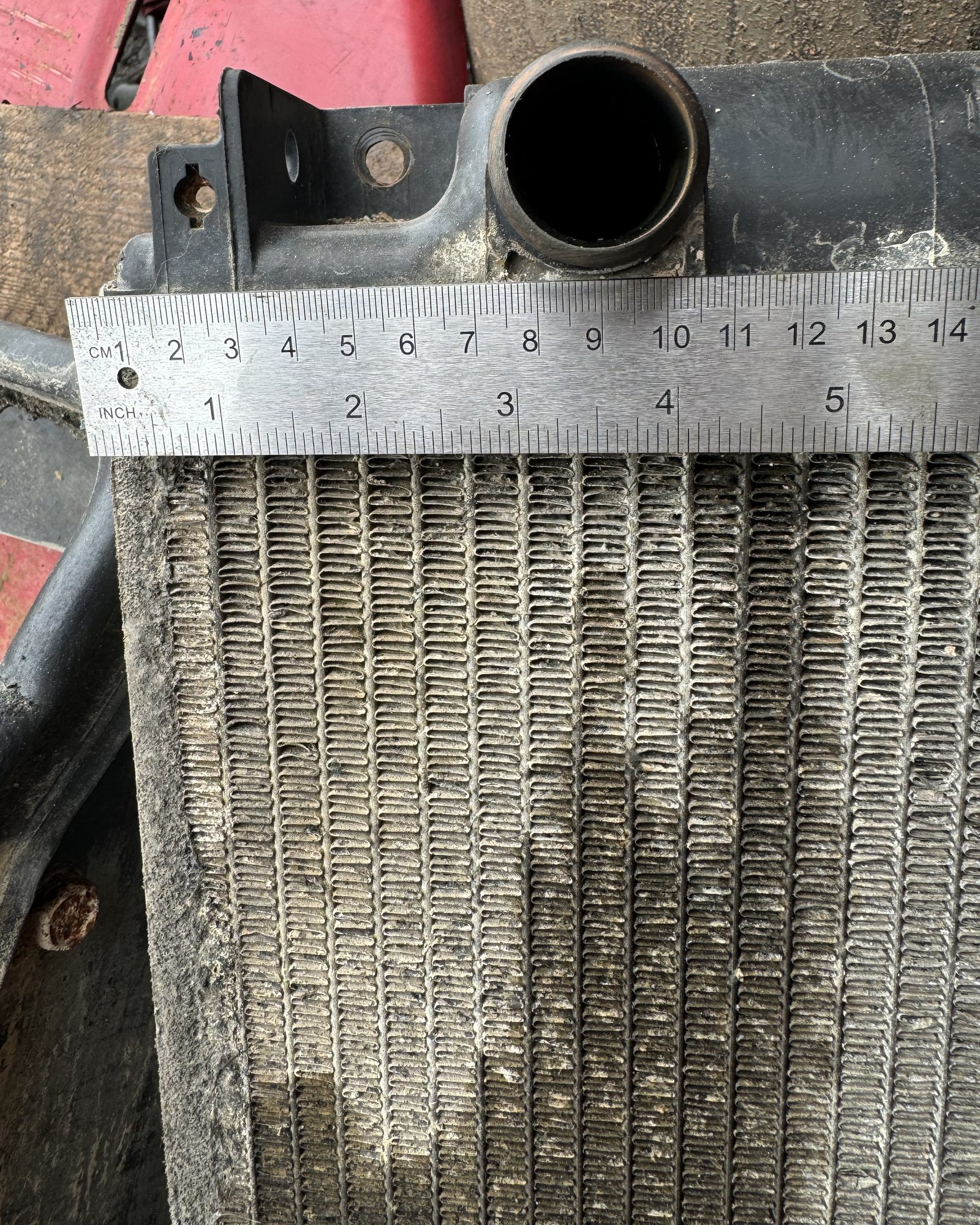

For a radiator or heat exchanger, the complete outline, core area, side frame and mounting points are different parts of the comparison. Overall width should not silently become core width, and a nearby ruler should not be treated as a verified pipe diameter.
Opening direction, relative position and surrounding brackets add installation context. A reservoir, where separately documented, has its own container outline, filling opening and attachment arrangement. It should not be linked to a radiator example simply because both concern cooling.
What the record contributes to the enquiry
The field record makes the visible comparison more precise: which end is shown, which opening is involved, where a dimension belongs and which mounting feature needs checking. Original part references and equipment information remain separate inputs to the selection.
These photographs describe exterior condition and structure. They are not evidence of filtration rating, cooling capacity, a confirmed fault or a completed repair. Keeping that boundary clear allows genuine field detail to support the conversation without overstating it.
Parts enquiry FAQ
Answers from EexcavaStart for discussing identification records.
Which features help describe a filter element?
Keep the complete outline, both ends, centre opening and sealing contact surface associated with the item. A separate cover or bowl needs its own reference.
How should a measurement reference be identified?
Name the feature, such as overall length, body length or outside diameter, and retain the two reference points and unit. Keep an unclear reading unconfirmed.
What should a cooling-component enquiry distinguish?
Separate the complete outline, core area, side frame and mounting points. Add the visible opening directions and original references where available.
Do two filters placed together prove interchangeability?
No. They provide an exterior comparison. A replacement relationship still needs reliable part and equipment references.
Can pleats or perforations establish filtration rating?
Not from appearance alone. Visible construction and verified performance information are different evidence.
Do visible deposits establish blockage or failure?
No. The photographs record visible condition. A fault or performance conclusion requires separate evidence.
